100% accelerated steady state aging
100% temperature stability
100% barometric pressure
Voltage rating of 10-500V
Operating temperature range of -55°C to +125°C
Features
Very high energy
Higher voltage and higher capacitance
Accept customization
Ordering Information
|

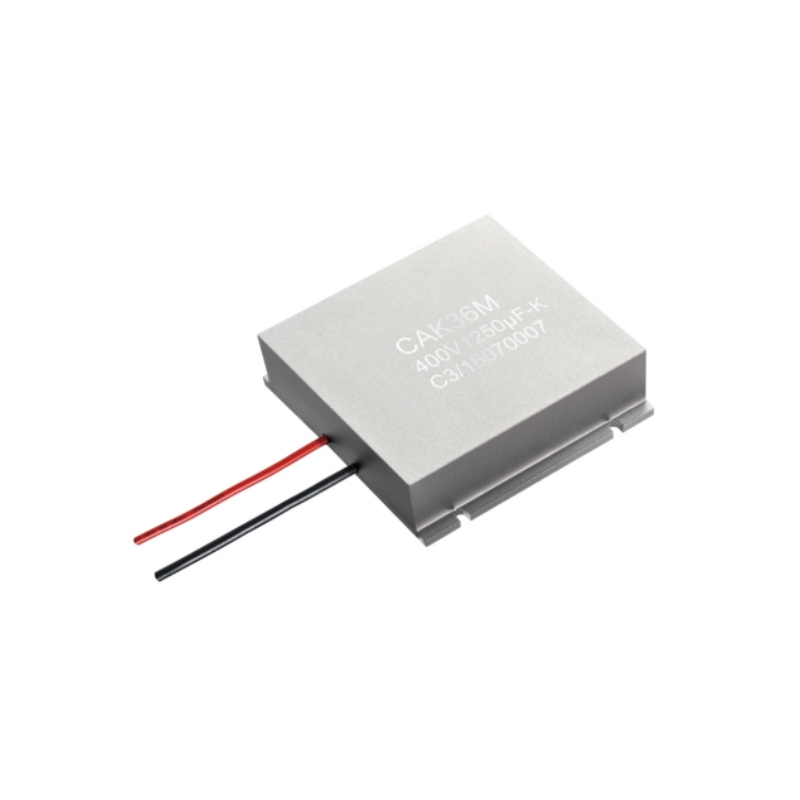

CAK36M |
— 400V |
— 1250µF |
— K |
— C3 |
|
Series |
Rated voltage |
Capacitance |
Capacitance tolerance |
Case size |
|
Combined Hermetically Sealed High Energy Tantalum Capacitor |
10V 16V 25V 35V 50V 63V 80V 100V 110V 125V 150V 200V 250V 300V 400V 500V |
- |
K=±10% M=±20% |
- |
Dimensions
|
|
|
|
unit:mm |
|
Case Size |
L±1 |
W±1 |
H±1 |
|
A1 |
75 |
47 |
14 |
|
A2 |
75 |
47 |
18 |
|
A3 |
75 |
47 |
24 |
|
A4 |
75 |
47 |
26 |
|
B1 |
112 |
47 |
14 |
|
B2 |
112 |
47 |
18 |
|
B3 |
112 |
47 |
24 |
|
B4 |
112 |
47 |
26 |
|
C1 |
83 |
75 |
14 |
|
C2 |
83 |
75 |
18 |
|
C3 |
83 |
75 |
24 |
|
C4 |
83 |
75 |
26 |
|
D1 |
112 |
83 |
14 |
|
D2 |
112 |
83 |
18 |
|
D3 |
112 |
83 |
24 |
|
D4 |
112 |
83 |
26 |
|
E1 |
160 |
83 |
14 |
|
E2 |
160 |
83 |
18 |
|
E3 |
160 |
83 |
24 |
|
E4 |
160 |
83 |
26 |
Applications
Typical applications include energy storage and power compensation.
---------------------------
