Features
High energy and very high capacitance design
All tantalum sealed case
Termination: radial leaded
100% accelerated steady state aging
100% barometric pressure
Voltage rating of 10-150V
Operating temperature range of -55℃ +125℃
Ordering Information
CAK36 |
— 50V |
— 1000µF |
— M |
— CD1 |
-A |
Series |
Rated voltage |
Capacitance |
Capacitance tolerance |
Case size |
Mounting Form |
Tantalum Solid Electrolytic Chip Capacitors of High Reliability |
10V 16V 25V 35V 50V 63V 80V 100V 125V 150V |
- |
K=±10% M=±20% |
- |
- |
Dimensions

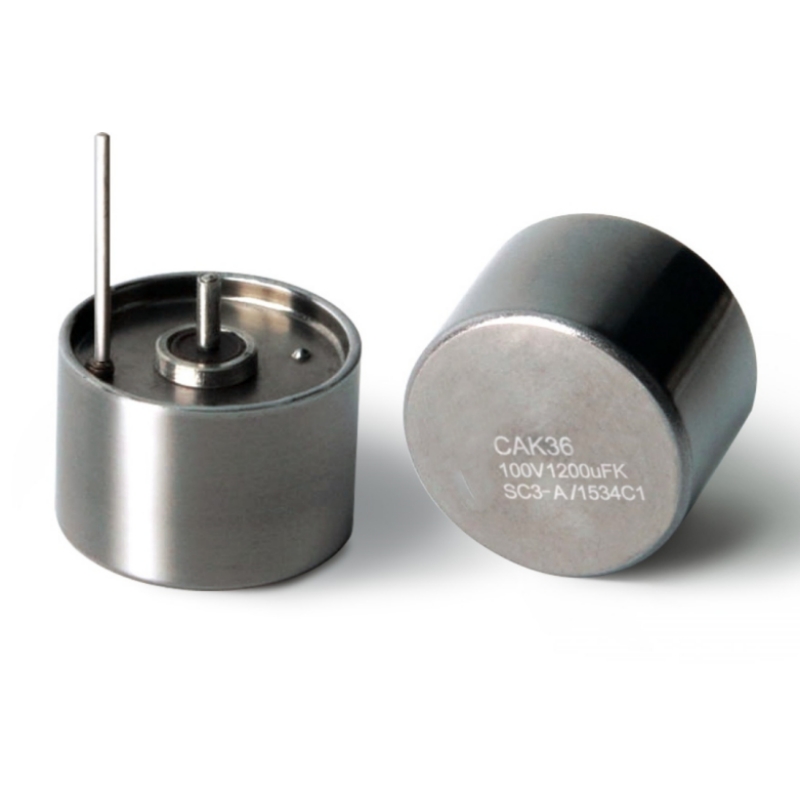

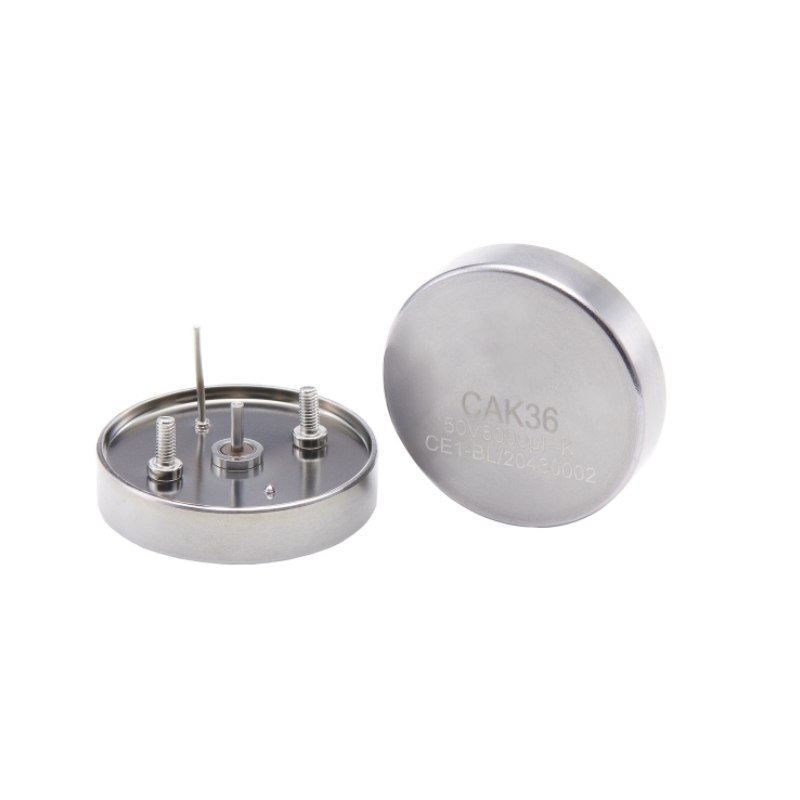

l Cylindrical Case
|
|
|
|
|
|
Unit:mm |
Case Size |
D±0.50 |
H±0.50 |
L1min |
L2±0.76 |
D1±0.38 |
Mounting Form |
CA1 |
Φ12 |
8.00 |
7 |
5.84 |
4 |
A / B / C / C1 |
CA2 |
10.00 |
|||||
CA3 |
12.00 |
|||||
CB1 |
Φ16 |
8.00 |
7 |
5.84 |
5.08 |
A ( A1 / A2 ) / B / C / C1 |
CB2 |
10.00 |
|||||
CB3 |
12.00 |
|||||
CB4 |
16.00 |
|||||
CC1 |
Φ19 |
8.00 |
7 |
5.84 |
6 |
A / B / C / C1 / BL / CL |
CC2 |
10.00 |
|||||
CC3 |
12.00 |
|||||
CC4 |
16.00 |
|||||
CC5 |
18.00 |
|||||
CC6 |
20.00 |
|||||
CD1 |
Φ22 |
8.00 |
7 |
5.84 |
7.5 |
A ( A1 / A2 ) / B / C / C1 / BL / CL |
CD2 |
10.00 |
|||||
CD3 |
12.00 |
|||||
CD4 |
16.00 |
|||||
CD5 |
18.00 |
|||||
CD6 |
20.00 |
|||||
CE1 |
Φ35.5 |
8.00 |
7 |
5.84 |
10.16 |
A ( A1 / A2 / A3 ) / B / C / C1 / BL / CL |
CE2 |
10.00 |
|||||
CE3 |
12.00 |
|||||
CE4 |
16.00 |
|||||
CE5 |
18.00 |
|||||
CE6 |
20.00 |
|||||
CE7 |
24.00 |

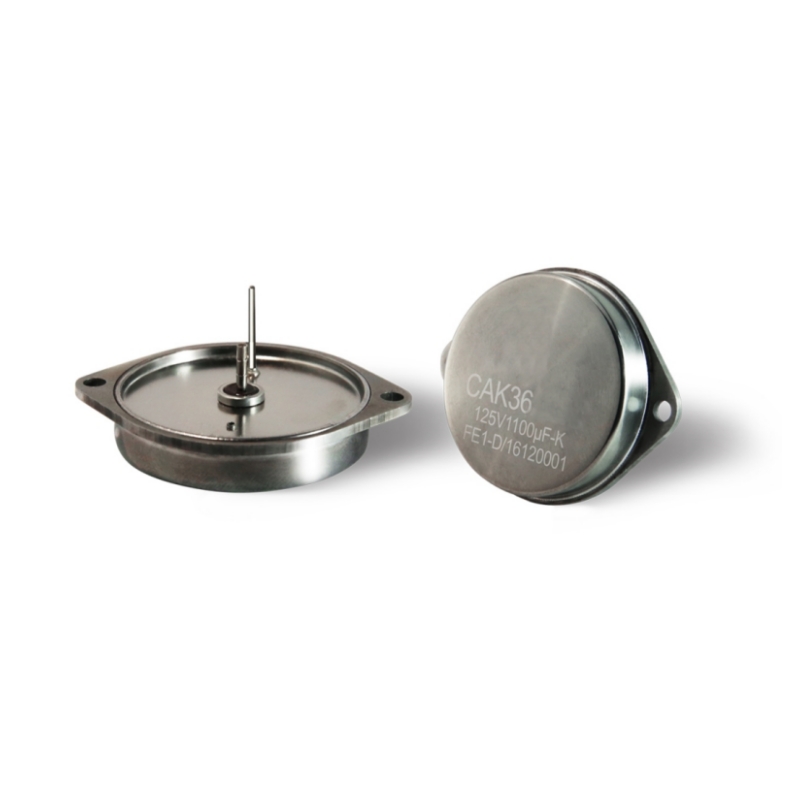

l Flange Case
|
|
|
|
|
|
Unit:mm |
Case Size |
H±0.50 |
D±0.50 |
L1min |
L2±0.76 |
D1±0.38 |
Mounting Form |
FE1 |
8.00 |
Φ35.5 |
7 |
5.84 |
10.16 |
D/E |
FE2 |
10.00 |
|||||
FE3 |
12.00 |
|||||
FE4 |
16.00 |
|||||
FE5 |
18.00 |
|||||
FE6 |
20.00 |
|||||
FE7 |
24.00 |

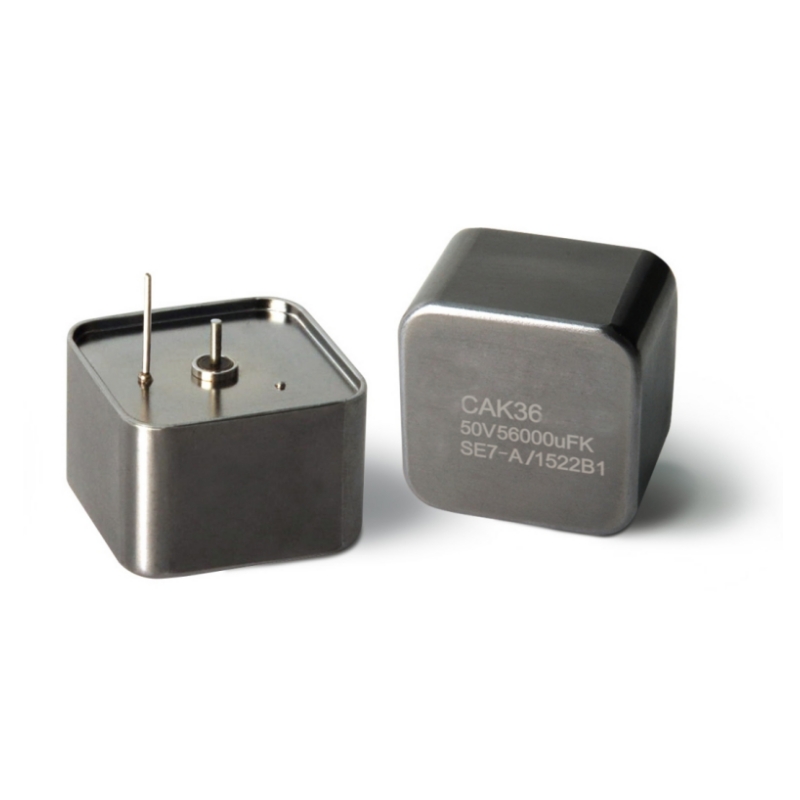

l Square Case
|
|
|
|
|
|
Unit:mm |
Case Size |
D±0.50 |
H±0.50 |
L1min |
L2±0.76 |
D1±0.38 |
Mounting Form |
SB1 |
16.00 |
8.00 |
7.00 |
5.84 |
5.00 |
F(F1) / F3 |
SB2 |
10.00 |
|||||
SB3 |
12.00 |
|||||
SB4 |
16.00 |
|||||
SC1 |
20.00 |
8.00 |
7.00 |
5.84 |
6.00 |
F(F1) / F3 / G |
SC2 |
10.00 |
|||||
SC3 |
12.00 |
|||||
SC4 |
16.00 |
|||||
SC5 |
18.00 |
|||||
SC6 |
20.00 |
|||||
SE1 |
35.50 |
8.00 |
7.00 |
5.84 |
10.16 |
F(F1) / F3 / F4 / G |
SE2 |
10.00 |
|||||
SE3 |
12.00 |
|||||
SE4 |
16.00 |
|||||
SE5 |
18.00 |
|||||
SE6 |
20.00 |
|||||
SE7 |
24.00 |
Mounting Bracket
|
|
|
|
|
Unit:mm |
Size |
D±0.20 |
L±0.2 |
L1±0.2 |
H±0.2 |
W±0.2 |
Φ16 |
16.5 |
22 |
17 |
8/12/16 |
6.7 |
Φ22 |
22.5 |
28 |
23 |
8/12/16 |
9 |
Φ35.5 |
36.5 |
37 |
32 |
8/12/16 |
11.3 |
|
|
|
|
|
|
|
Unit:mm |
Size |
D±0.20 |
L±0.2 |
L1±0.2 |
D1±0.2 |
D2±0.2 |
D3±0.2 |
S±0.2 |
Φ16 |
16.5 |
21 |
15 |
12 |
4.5 |
2.5 |
2.5 |
Φ22 |
22.5 |
28 |
21 |
18 |
5.5 |
3 |
3 |
Φ35.5 |
36.5 |
40 |
32 |
32 |
7 |
4 |
4 |
|
|
|
|
|
|
|
|
|
Unit:mm |
Size |
D±0.20 |
L±0.2 |
L1±0.2 |
D1±0.2 |
D2±0.2 |
D3±0.2 |
R1±0.2 |
R2±0.2 |
S±0.2 |
20 x 20 |
20.5 |
30 |
24 |
16 |
5.5 |
3 |
2 |
4 |
2 |
35.5 x 20 |
36.5 |
47 |
39 |
32 |
7 |
4 |
4 |
6 |
3 |
ELECTRICAL CHARACTERISTICS
Capacitance and DF are measured at 100Hz, 1V RMS with DC bias of 2.2V. Leakage Current is measured at rated voltage after 3 minutes, protective resistance of 1000Ωis connected in series with the capacitor in the measuring circuit.
Storage
To maintain the solderability of terminal electrodes and to keep packaging materials in good condition, care must be taken to control temperature and humidity.
Recommended conditions
· Temperature : From -5℃ to 40℃
· Humidity : Below 60% RH
Even under ideal storage conditions, solderability of capacitors is deteriorated as time passes, so capacitors shall be used within 12 months from the time of delivery. lf exceeding the above period, please check solderability before using the capacitors.
Application
Typical applications include decoupling and filtering in industrial and automotive end applications such as DC/DC converters, portable electronics,telecommunications, and control uint.
---------------------------
