Lead-free terminations, RoHS and Reach Compliant
Features

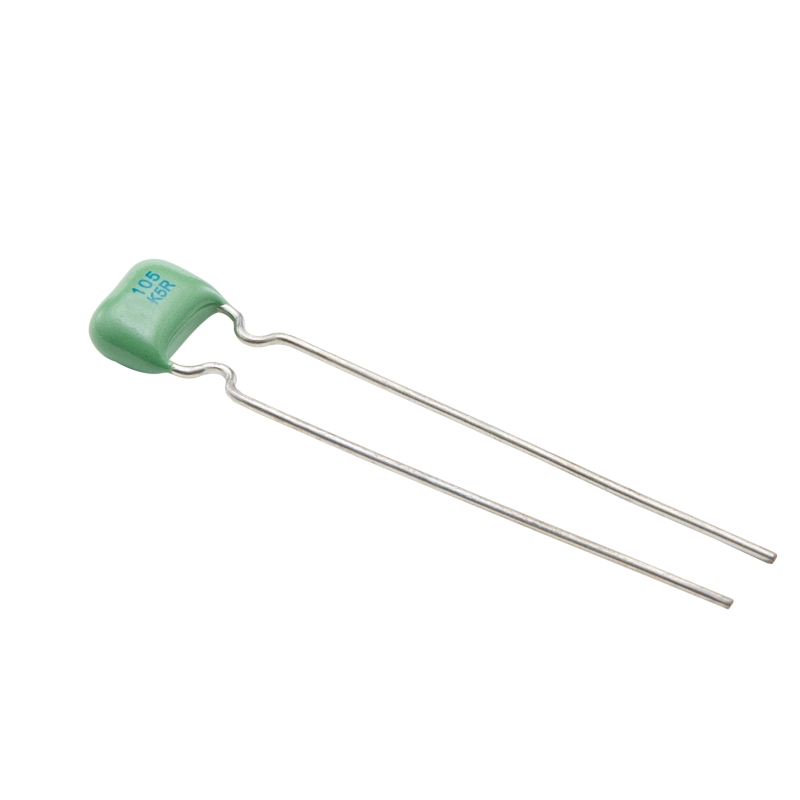

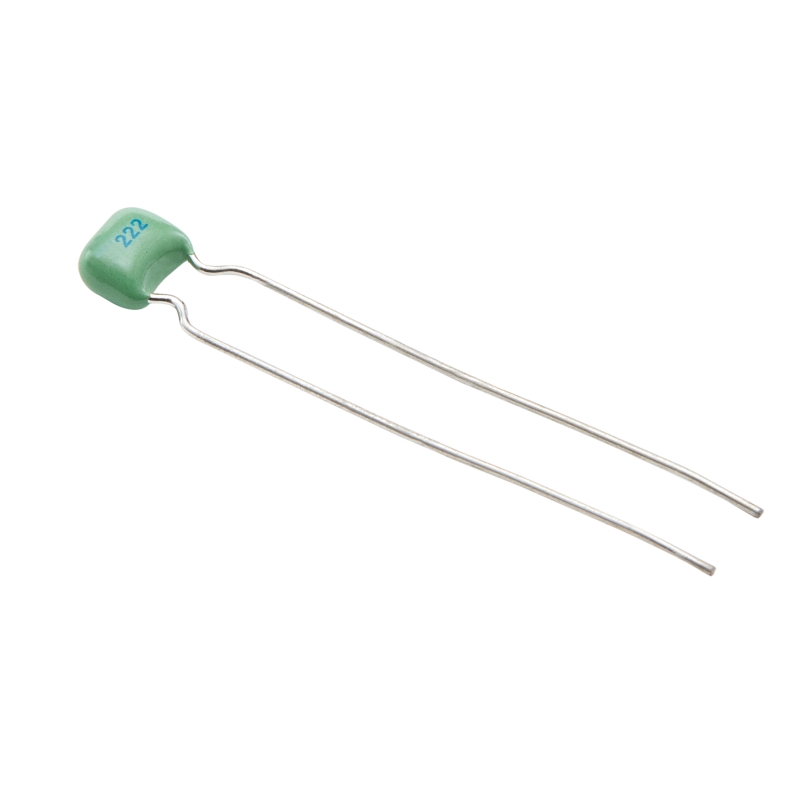

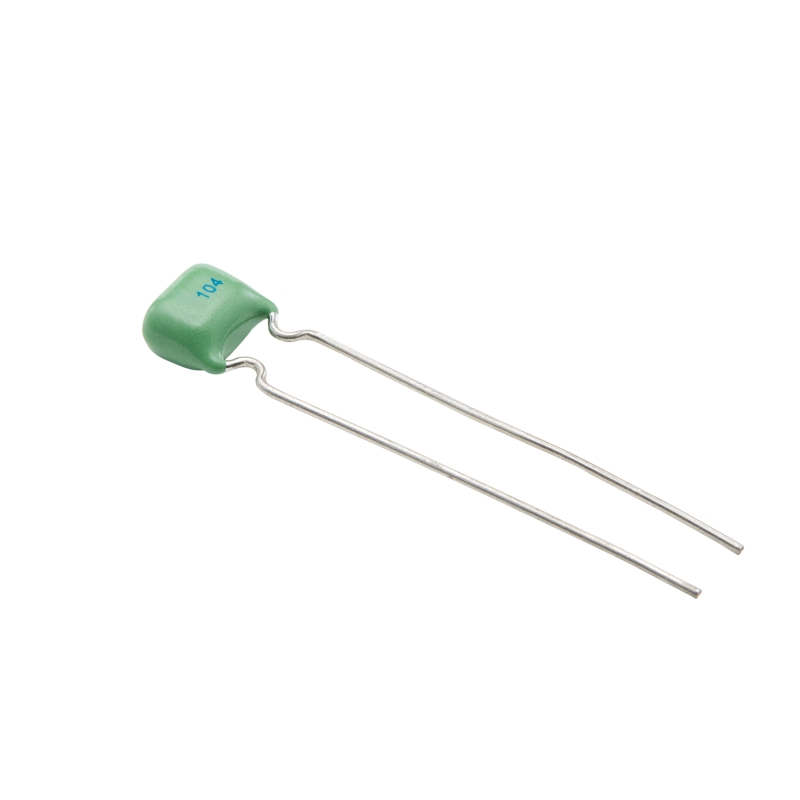

Torch brand Radial Leads Capacitors are of small size and light weight. They are non-polar and thus are easy to install. The X7R dielectric is classified as class II material, suited for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. Ceramic capacitors using this type of dielectric are considered to be “stable”, with a predictable change in capacitance limited to ±15% from −55°C to +125°C, with respect to time and voltage, boasting a minimal change in capacitance with reference to ambient temperature.
Ordering Information
CT4G |
- 0805 |
- X7R |
- 50V |
- 100pF |
- J |
- H |
- L |
- T |
|
Series |
Case Size |
Dielectric |
Rated Voltage |
Capacitance |
Capacitance Tolerance |
Wire Form |
Packaging |
||
Leg form |
Leg length |
||||||||
CT4G- Class II Ceramic |
0805 1206 1210 1812 2220 2225 |
X7R |
6.3V 10V 16V 25V 50V 100V 200V 500V 1KV 2KV 3KV |
Refer to Capacitance and Rated Voltage Range |
J=±5% K=±10% M=±20% |
L H |
See packaging style |
Dimensions
|
|
|
|
|
|
Unit:mm |
Size Code |
0805 |
0805 |
1206 |
1210 |
1812 |
2225 |
Wmax |
4.85 |
4.85 |
5.86 |
5.86 |
7.14 |
8.62 |
Hmax |
4.16 |
4.16 |
4.36 |
4.80 |
6.00 |
8.62 |
Tmax |
3.70 |
3.70 |
4.10 |
4.20 |
4.20 |
4.20 |
F |
2.54±0.1 |
5.08±0.1 |
5.08±0.1 |
5.08±0.1 |
5.08±0.12 |
5.08±0.12 |
d |
0.5±0.05 |
0.5±0.05 |
0.5±0.05 |
0.5±0.05 |
0.6±0.05 |
0.6±0.05 |
Length(Lmin) |
25.4 |
25.4 |
25.4 |
25.4 |
||
Appearance |
|
|
|
|
||
Wire Form |
L |
H |
H |
H |
Electrical Characteristics
Item |
Specification Limits |
Measuring Conditions |
|
Operating Temperature Range |
C0G |
-55℃ to +125℃ |
— |
X7R |
|||
X5R |
-55℃ to +85℃ |
||
Capacitance |
Within specified tolerance |
— |
|
Q |
CG |
CR≤30 pF: Q≥400+20CR CR>30 pF: Q≥1000 |
CG: CR≤1000PF 1MHz±10% 0.5V-5V CR>1000pF 1kHz±10% 1V±0.2V
X7R & X5R: CR≤10μF 1kHz±10% 1V±0.2V CR>10μF 120Hz±10 0.5V±0.2V |
X7R X5R |
UR≥50V , tgδ≤3.5%; 25V≤UR<50V , tgδ≤5.0%; 16V≤UR<25V , tgδ≤7.0%; 4V≤UR<16V , tgδ≤10%; ※Note: CR≥1μF,tgδ≤10 %; |
||
Insulation Resistance |
10000MΩ or 100MΩ·μF whichever is less |
Rated voltage shall be applied within following conditions: UR≤500V UR UR>500V 500V Voltage applying time shall be 60±5 seconds, charging and discharging current shall be 50mA or less. |
|
Dielectric Strength |
No breakdown or visual defects |
250% of DC rated voltage for 5 seconds, charging and discharging current shall be 50mA or less. |
Packaging Style
T=bulk, A=tape/reel, B=tape/ammo
Storage
To maintain the solderability of terminal electrodes and to keep packaging materials in good condition, measures should be taken to control temperature and humidity.
*Recommended conditions:
Even under ideal storage conditions, solderability of capacitors is deteriorated as time passes, so capacitors shall be used within 12 months from the time of delivery. When exceeding the above period, please check solderability before applying the capacitors to your circuit.
Applications
Typical applications include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass, filtering, transient voltage suppression, blocking, and energy storage.
--------------
