Lead-free termination, RoHS Compliant
Voltage :
2.5 V~63 VSize :
A B C D D1 E F
Features
Extremely low ESR
Low leakage current
High frequency capacitance retention
Non-ignition failure mode
Operating temperature rang of -55℃ to +125℃
Moisture Sensitivity Level 3
Ordering Information
|
CA55 |
— D |
— 35V |
— 22µF |
— M |
|
Series |
Case size |
Rated voltage |
Capacitance |
Capacitance tolerance |
|

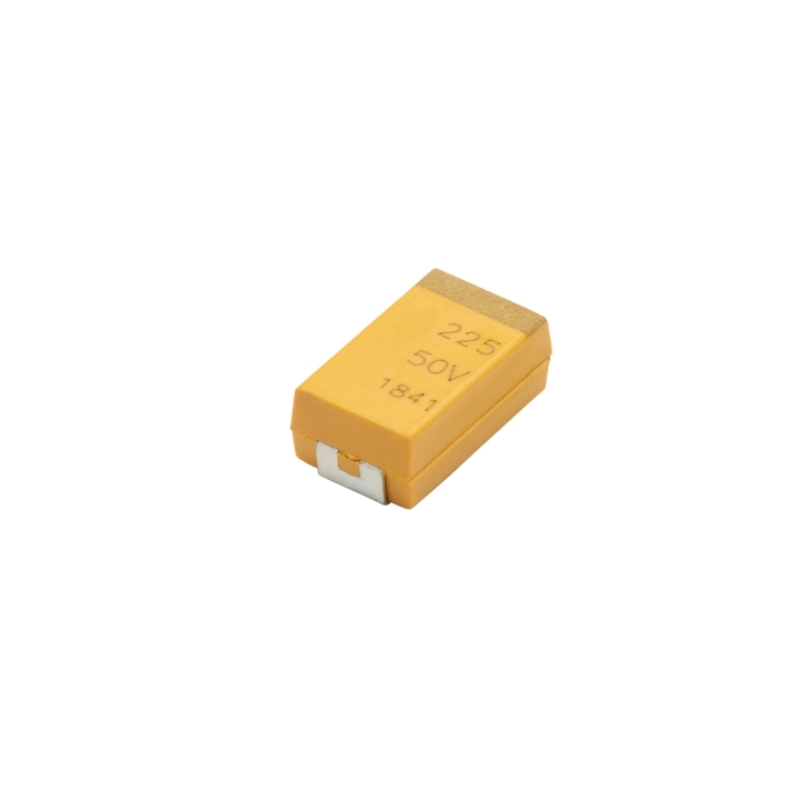

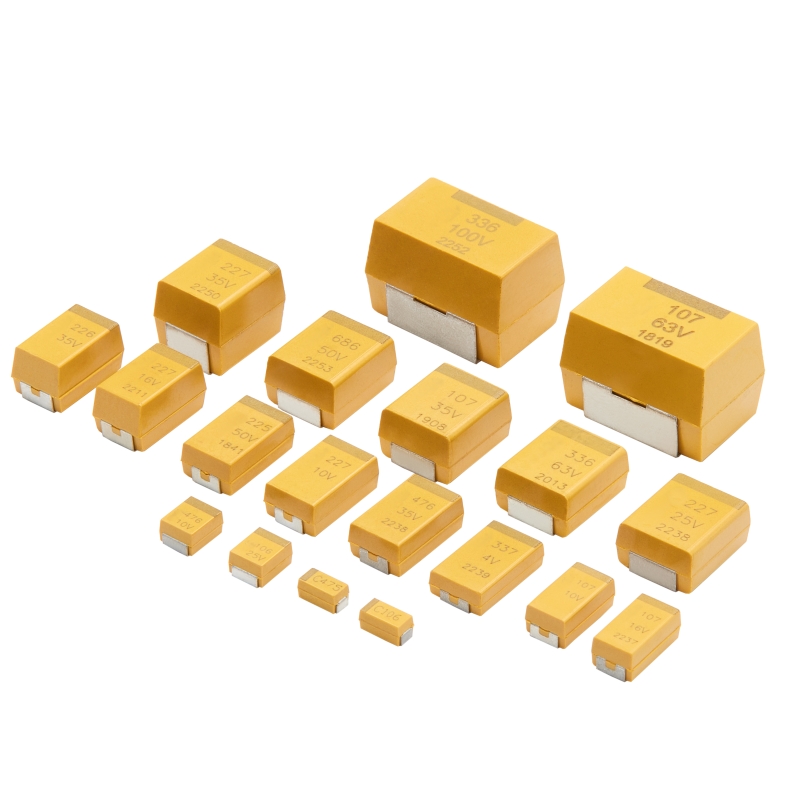

CA55 Polymer Tantalum Solid Electrolytic Chip Capacitors of High Reliability |
A B C D D1 E F |
2.5V 4V 6.3V 10V 16V 20V 25V 35V 50V 63V
|
- |
M=±20% |
Dimensions
|
|
|
|
|
|
unit:mm |
|
Case Size |
L |
W |
H |
S |
W1 |
|
A |
3.20±0.35 |
1.60±0.25 |
1.60±0.25 |
0.80±0.30 |
1.20±0.10 |
|
B |
3.50±0.35 |
2.80±0.25 |
1.90±0.25 |
0.80±0.30 |
2.20±0.10 |
|
C |
6.00±0.35 |
3.20±0.30 |
2.50±0.30 |
1.30±0.30 |
2.20±0.10 |
|
D |
7.30±0.35 |
4.30±0.30 |
2.80±0.30 |
1.30±0.30 |
2.40±0.10 |
|
D1 |
7.30±0.35 |
4.30±0.30 |
2.00±0.30 |
1.30±0.30 |
2.40±0.10 |
|
E |
7.30±0.35 |
4.30±0.30 |
4.10±0.30 |
1.30±0.30 |
2.80±0.10 |
|
F |
7.30±0.35 |
6.10±0.30 |
3.80±0.30 |
1.30±0.30 |
3.80±0.10 |
Temperature Characteristic
|
Temperature Characteristic |
-55℃ |
25℃ |
85℃ |
125℃ |
|
(ΔC/C)* |
-20%~+10% |
Initial value |
-10%~+30% |
-10%~+50% |
|
Leakage Current |
N/A |
1=0.1*CR*UR or 5μA (Whichever is larger) |
10*I0 |
12.5*I0 |
Electrical Characteristic
Capacitance and DF are measured at 100Hz, 1V RMS with DC bias of 2.2V. Leakage Current is measured at rated voltage after 3 minutes, protective resistance of 1000Ωis connected in series with the capacitor in the measuring circuit.
