Lead-free terminations, RoHS and Reach Compliant

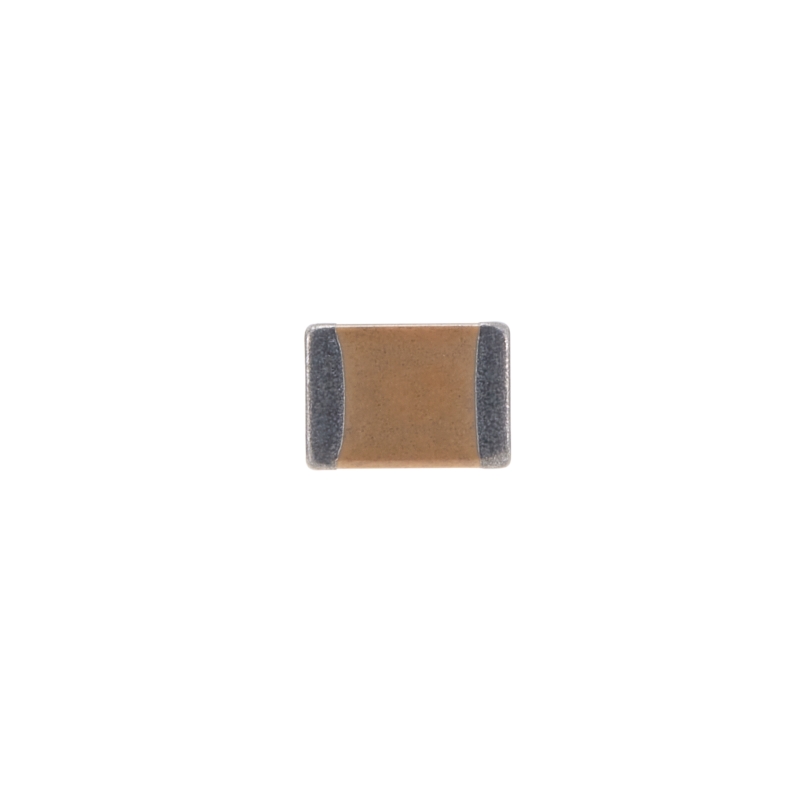

Features
Capacitance ranging from 100pF to 1.5μF
Voltage rating of 250V~3kV
Operating temperature range of -55℃ to +125℃
Ordering Information
|
CC48 |
-1206 |
-CG |
-1KV |
-100pF |
-J |
(N) |
|
Series |
Case size |
Dielectric |
Rated voltage |
Capacitance |
Capacitance tolerance |
Termination Finish |
|
CC48- Class I |
0603 0805 1206 1210 1808 1812 2220 2225 |
C0G X7R |
250V 500V 630V 1KV 2KV 3KV |
- |
<10pF C=±0.25pF D=±0.5pF ≥10pF J=±5% |
N=100% Sn G=gold plated end |
|
CT48- Class II |
|
K=±10% M=±20% |

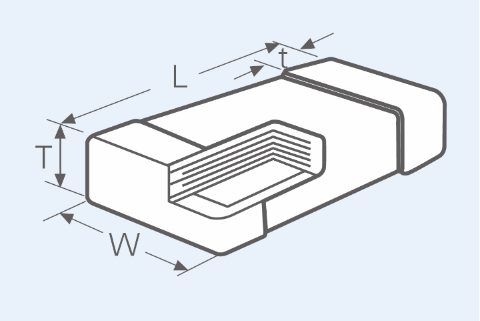

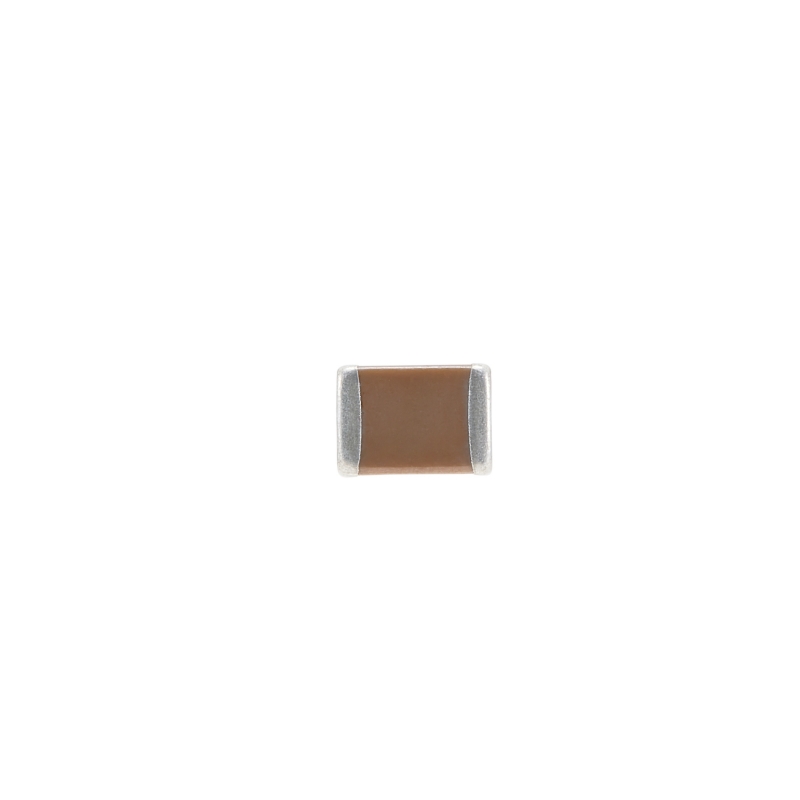

Dimensions
|
|
|
|
|
|
|
|
|
Unit:mm |
|
Size Code |
0603 |
0805 |
1206 |
1210 |
1808 |
1812 |
2220 |
2225 |
|
L |
1.60±0.20 |
2.00±0.30 |
3.2±0.3 |
3.20±0.30 |
4.50±0.40 |
4.50±0.40 |
5.70±0.50 |
5.70±0.50 |
|
W |
0.80±0.20 |
1.25±0.20 |
1.6±0.3 |
2.50±0.30 |
2.00±0.30 |
3.20±0.30 |
5.00±0.50 |
6.50±0.60 |
|
Tmax |
1.00 |
1.45 |
1.90 |
2.80 |
2.30 |
3.50 |
4.20 |
4.20 |
|
t |
0.35±0.25 |
0.50±0.25 |
0.50±0.35 |
0.60±0.30 |
0.64±0.38 |
0.90±0.60 |
0.90±0.60 |
0.90±0.60 |
Electrical Characteristics
|
Item |
Specification Limits |
Measuring Conditions |
|
|
Capacitance |
Within specified tolerance |
— |
|
|
Dissipation Factor |
CG |
tg δ ≤ 0.1% |
CG: CR≤1000PF 1MHz±10% 0.5V-5V CR>1000pF 1kHz±10% 1V±0.2V X7R: CR≤10μF 1kHz±10% 1V±0.2V CR>10μF 120Hz±10% 0.5V±0.2V |
|
X7R |
tgδ≤2.5 %; |
||
|
Insulation Resistance |
10000MΩ or 500MΩ·μF whichever is less |
CR≤0.01μF IR≥104MΩ CR>0.01μF IR≥100/CR MΩ |
|
|
Dielectric Strength |
No breakdown or visual defects |
Rated voltage shall be applied with following conditions for 5 seconds: UR=250V 2.0UR UR=500V 1.5UR UR≥630V 1.2UR Charging and discharging current shall be 50mA or less. |
|
Storage
To maintain the solderability of terminal electrodes and to keep packaging materials in good condition, measures should be taken to control temperature and humidity.
*Recommended conditions:
Even under ideal storage conditions, solderability of capacitors is deteriorated as time passes, so capacitors shall be used within 12 months from the time of delivery. When exceeding the above period, please check solderability before applying the capacitors to your circuit.
Applications
Typical applications include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass, filtering, transient voltage suppression, blocking, and energy storage.
-----------------------------
--------------
