Operating temperature range of -40°C to +70°C
Store more energy
LOW ESR for high power density
Long cycle life
Customization Accepted
Features

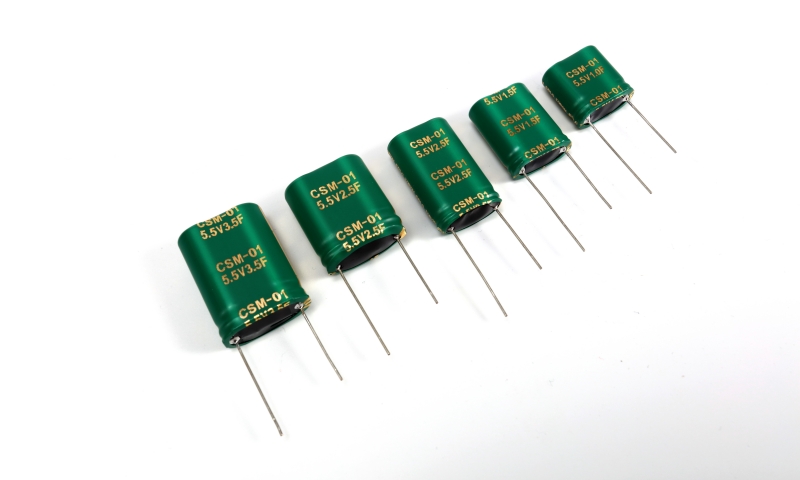

Torch Brand CSM-01C Series Super Capacitor Bank consists of two or more CSD01 linear monomer in series and in parallel, combined with the corresponding monomer over voltage protection, featuring high operating voltage, high energy storage, large output power, stable performance, etc. At the same time, it has the advantages of high power and large current charging and discharging, high temperature and wide working range, high life free maintenance, environmental protection and safety.
Rated Voltage Range: 5.4V~65V
Capacitance: Customized
Termination: Leads
Ordering Information
|
CSM01-C |
GP |
5R5 |
104 |
M |
TG0 |
Y |
F |
— M |
|
Series |
Temperature characteristics |
Rated voltage |
Capacitance (µF) |
Capacitance tolerance |
Size code |
Wire form |
Packaging |
/ |
|
CSM01-C |
GP (General Product) RP (Resin Package) SC (Specially Customized) |
5R5=5.5V 32R=32V |
First two digits represent significant figures. The third digit specifies number of zeros. Example: 305=3000000µF =3.0F |
K=±10% M=±20% N=±30% Q=-20%~50% V=-20%~80% |
- |
X Y Z W |
F=Waffle T=bulk |
Internal code standard |
Application
Typical applications include hybrid battery packs, UPS & telecom systems, hold up power, high pulse current applications.
--------------------------
