Operating temperature range of -40°C to +70°C
Large capacitance for high energy density
Internal with high reliable single voltage monitoring chip
High efficiency single over-voltage protection circuit
Customization Accepted
Ordering Information
|
CSM02 |
GP |
32R |
386 |
M |
SK1 |
Y |
F |
— M |
|
Series |
Temperature characteristics |
Rated voltage |
Capacitance (µF) |
Capacitance tolerance |
Size code |
Wire form |
Packaging |
/ |
|
CSM02 |
GP (General Product) RP (Resin Package) SC (Specially Customized) |
32R=32V |
First two digits represent significant figures. The third digit specifies number of zeros. Example: 305=3000000µF =3.0F |
K=±10% M=±20% N=±30% Q=-20%~50% V=-20%~80% |
- |
X Y Z W |
T=bulk |
Internal code standard |

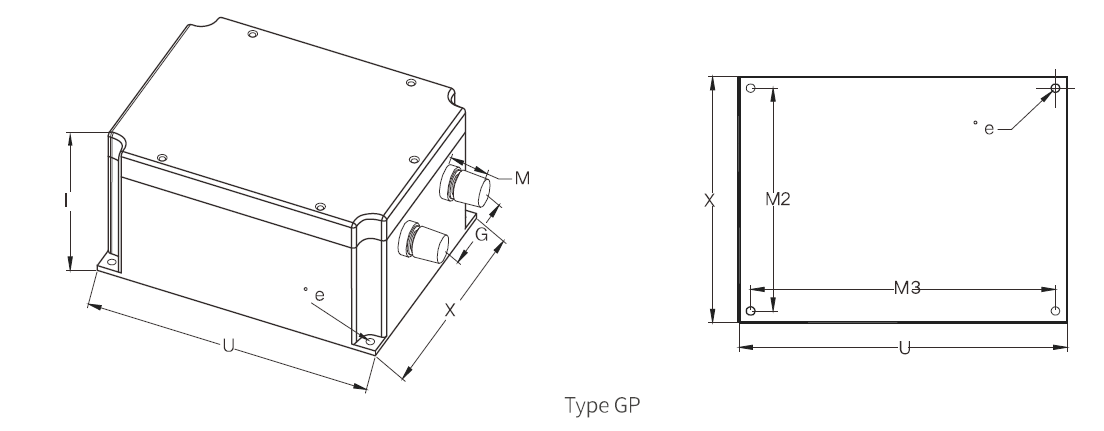

Dimensions
|
Size Code |
Case Size(mm) |
Weight(kg) |
|||||||
|
W |
T |
H |
F |
L |
L1 |
L2 |
d |
||
|
SK1 |
130.0±3.0 |
170.0±3.0 |
80.0±1.0 |
53.0±1.0 |
23.0±3.0 |
118.0±2.0 |
158.0±2.0 |
5.0±0.3 |
2.19±0.2 |
|
SK2 |
130.0±3.0 |
170.0±3.0 |
91.0±3.0 |
53.0±1.0 |
23.0±3.0 |
118.0±2.0 |
158.0±2.0 |
5.0±0.3 |
2.65±0.2 |
Application
Typical applications include hybrid battery packs, UPS & telecom systems, hold up power, high pulse current applications.
--------------------------
Rated voltage of 2.7V Capacitance ranging from 100F to 600F
