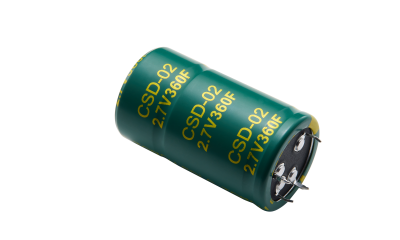

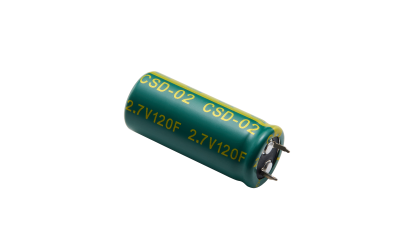

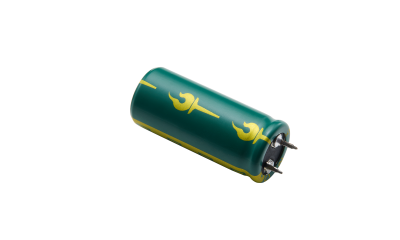

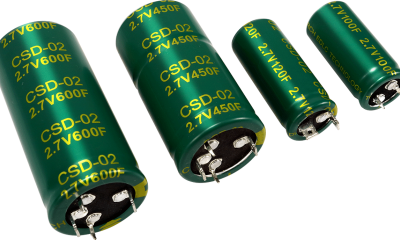

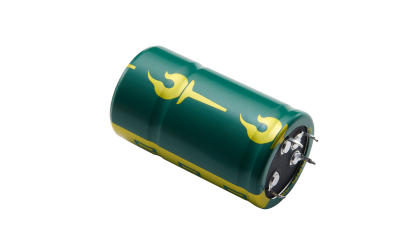

Rated voltage of 2.7V
Capacitance ranging from 100F to 600F
Features
Low ESR, high power density
Suitable for quick charge and discharge
Customization accepted
Ordering Information
|
CSD02 |
MT |
2R7 |
457 |
K |
M08 |
W |
T |
— M |
|
Series |
Temperature characteristics |
Rated voltage |
Capacitance(µF) |
Capacitance tolerance |
Size code |
Wire form |
Packaging |
/ |
|
CSD02 |
CP: -25℃~70℃ MT: -40℃~70℃ LT: -50℃~65℃ |
2R7=2.7V 3R0=3.0V |
First two digits represent significant figures. Third digit specifies number of zeros. Example: 305=3000000µF =3.0F |
K=±10% M=±20% |
- |
Form S Form L Form W Form T |
T=bulk |
Internal code standard |

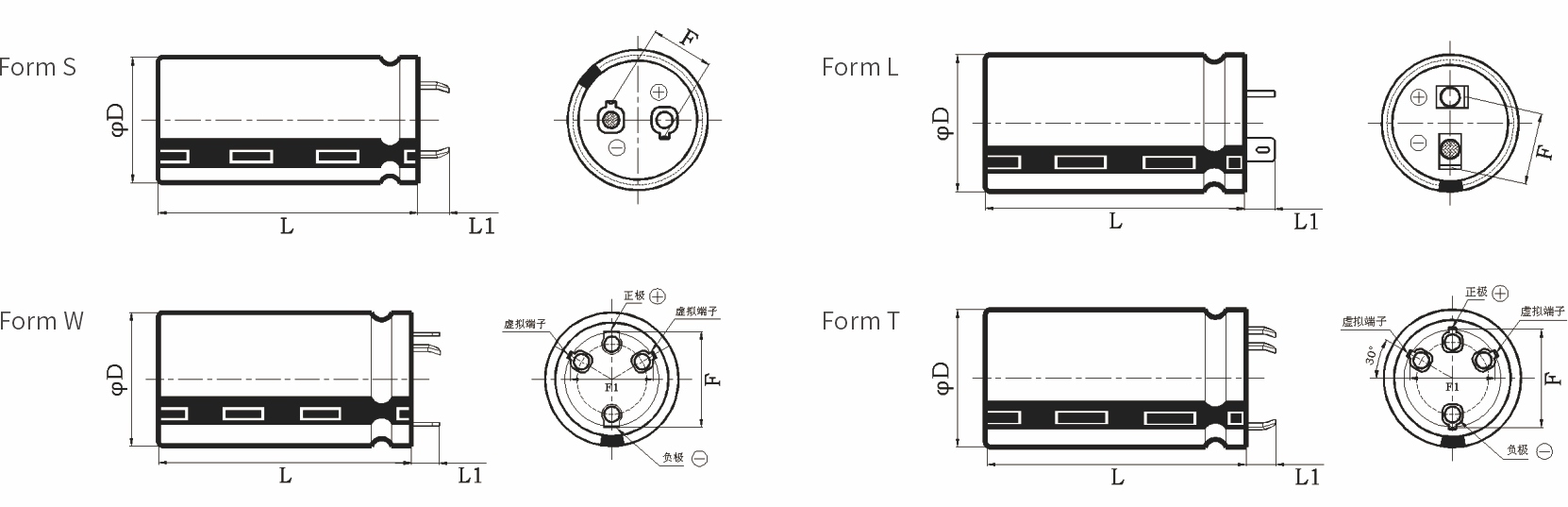

Dimensions
|

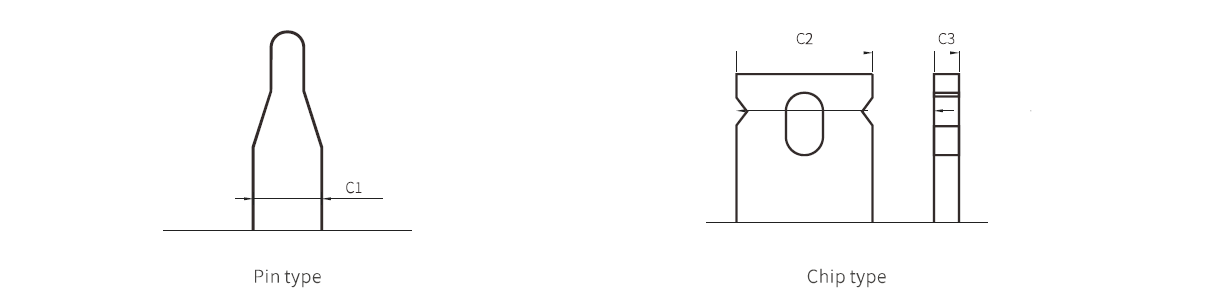

Pin type Size code |
Chip Size Code |
|
|
C1 |
C2 |
C3 |
|
1.60±0.10 |
5.20±0.20 |
1.00±0.10 |
|
Size Code |
Unit: mm |
Weight(g) |
||||
|
D |
L |
L1 |
F |
F1 |
||
|
M01 |
22.0±1.5 |
45.0±2.0 |
6.5±1.0 |
10.0±2.0 |
/ |
21.5±2.0 |
|
M02 |
22.0±1.5 |
50.0±2.0 |
6.5±1.0 |
10.0±2.0 |
/ |
23.0±2.0 |
|
M12 |
22.0±1.5 |
56.0±2.0 |
6.5±1.0 |
10.0±2.0 |
/ |
32.0±2.0 |
|
M03 |
25.0±1.5 |
50.0±2.0 |
6.5±1.0 |
10.0±2.0 |
/ |
35.0±2.0 |
|
M04 |
30.0±1.5 |
52.0±2.0 |
6.5±1.0 |
10.0±2.0 |
/ |
44.5±3.0 |
|
M05 |
30.0±1.5 |
55.0±2.0 |
6.5±1.0 |
10.0±2.0 |
/ |
46.0±3.0 |
|
M11 |
30.0±1.5 |
60.0±2.0 |
6.5±1.0 |
10.0±2.0 |
/ |
70.0±3.0 |
|
M06 |
35.0±1.5 |
62.0±2.0 |
6.0±1.0 |
21.1±1.0 |
20.0±1.0 |
76.0±5.0 |
|
M07 |
35.0±1.5 |
66.0±2.0 |
6.0±1.0 |
21.1±1.0 |
20.0±1.0 |
85.0±5.0 |
|
M08 |
35.0±1.5 |
68.0±2.0 |
6.0±1.0 |
21.1±1.0 |
20.0±1.0 |
85.0+5.0 |
|
M09 |
35.0±1.5 |
71.0±2.0 |
6.0±1.0 |
21.1±1.0 |
20.0±1.0 |
86.5±5.0 |
|
M10 |
35.0±1.5 |
78.0±2.0 |
6.0±1.0 |
21.1±1.0 |
20.0±1.0 |
96.0±6.0 |
Application
Typical applications include hybrid battery packs, UPS & telecom systems, hold up power, high pulse current applications.
---------------------
