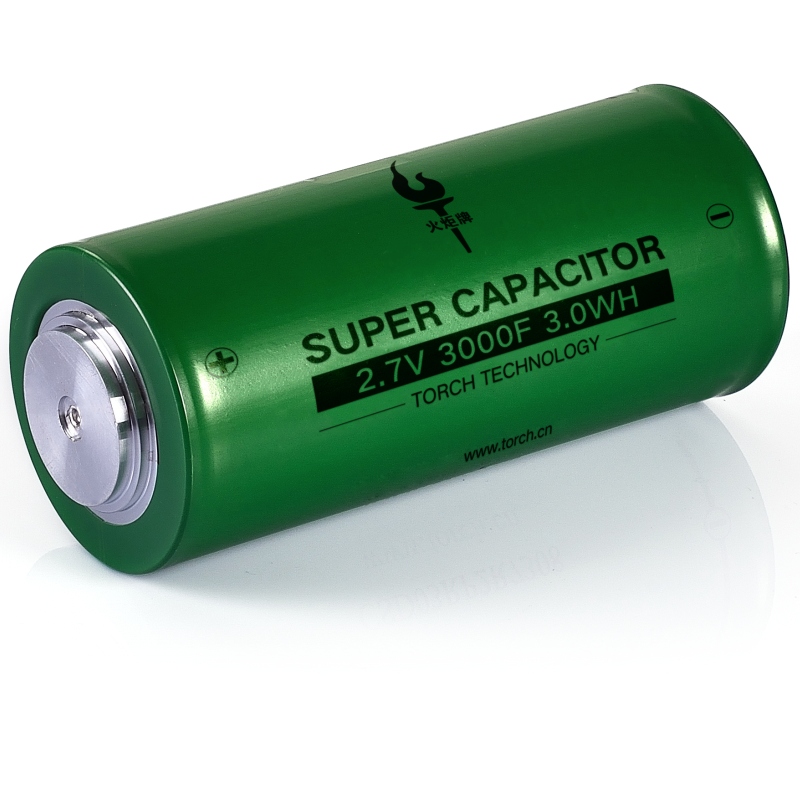

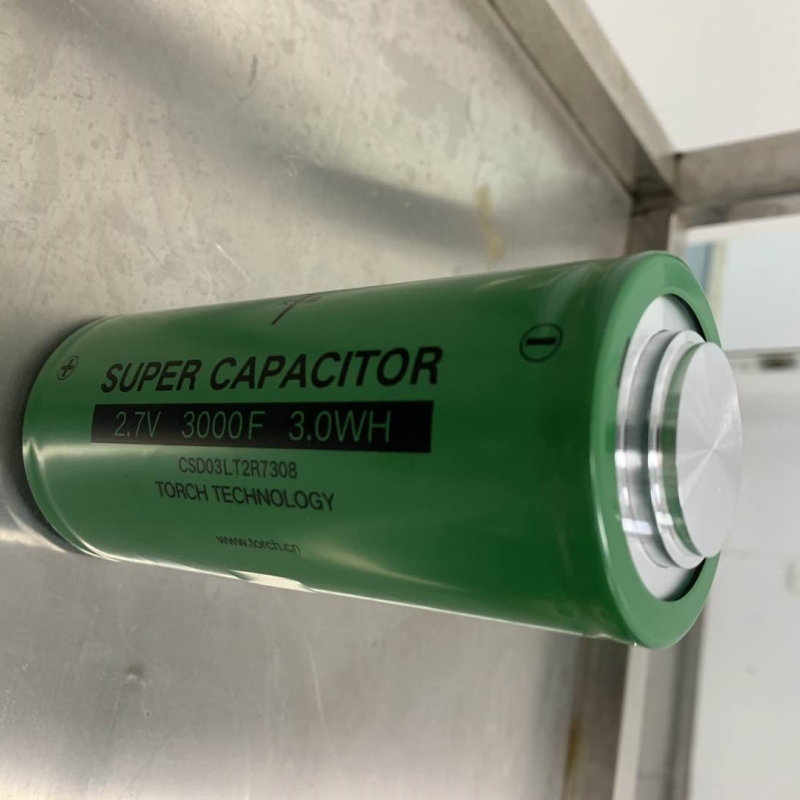

Capacitance: 650F ~ 3000F
Rated Voltage: 2.7V
Features
Large capacitance for high energy density
Low ESR for high power density
Long cycle life
Suitable for quick charge and discharge
Ordering Information
|
CSD03 |
MT |
2R7 |
308 |
K |
C54 |
X |
E |
— M |
|
|
Series |
Temperature characteristics |
Rated voltage |
Capacitance (µF) |
Capacitance tolerance |
Size code |
Wire form |
Packaging |
/ |
|
|
CSD03 |
CP: -25℃~65℃ MT: -40℃~65℃ LT: -55℃~65℃ |
2R7=2.7V |
First two digits represent significant figures. The third digit specifies number of zeros. Example: 305=3000000µF =3.0F |
K=±10% M=±20% |
- |
X= Aluminium |
T=bulk |
Internal code standard |
|

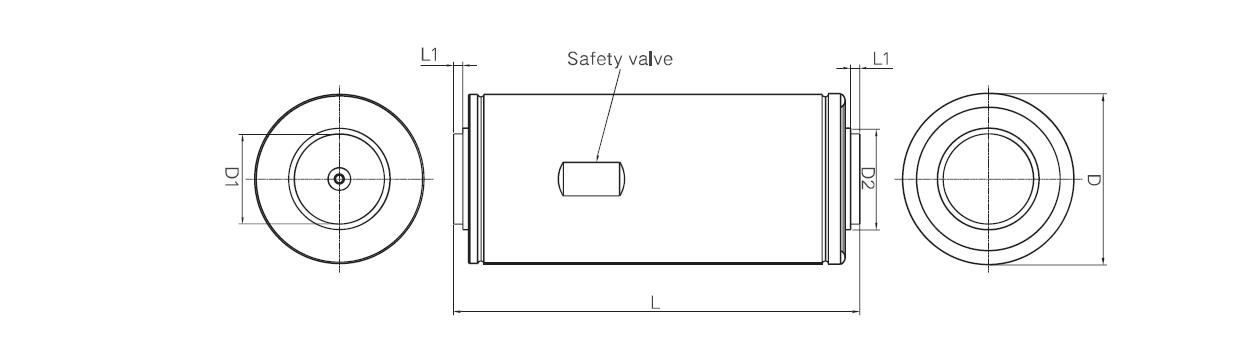

Dimensions
|
Case Size |
Unit: mm |
Weight(g) |
|||||
|
L |
L1 |
L2 |
D |
F |
d |
||
|
C50 |
57.5±0.5 |
3.0±0.05 |
47.5±0.5 |
60.0±0.7 |
32.0±0.5 |
36.0±0.5 |
160±5 |
|
C51 |
80.0±0.5 |
3.0±0.05 |
70.0±0.5 |
60.0±0.7 |
32.0±0.5 |
36.0±0.5 |
260±5 |
|
C52 |
91.0±0.5 |
3.0±0.05 |
81.0±0.5 |
60.0±0.7 |
32.0±0.5 |
36.0±0.5 |
280±5 |
|
C53 |
108.0±0.5 |
3.0±0.05 |
98.0±0.5 |
60.0±0.7 |
32.0±0.5 |
36.0±0.5 |
360±10 |
|
C54 |
144.0±1.0 |
3.0±0.05 |
134.0±0.5 |
60.0±0.7 |
32.0±0.5 |
36.0±0.5 |
510±10 |
Application
Typical applications include hybrid battery packs, UPS & telecom systems, hold up power, high pulse current applications.
